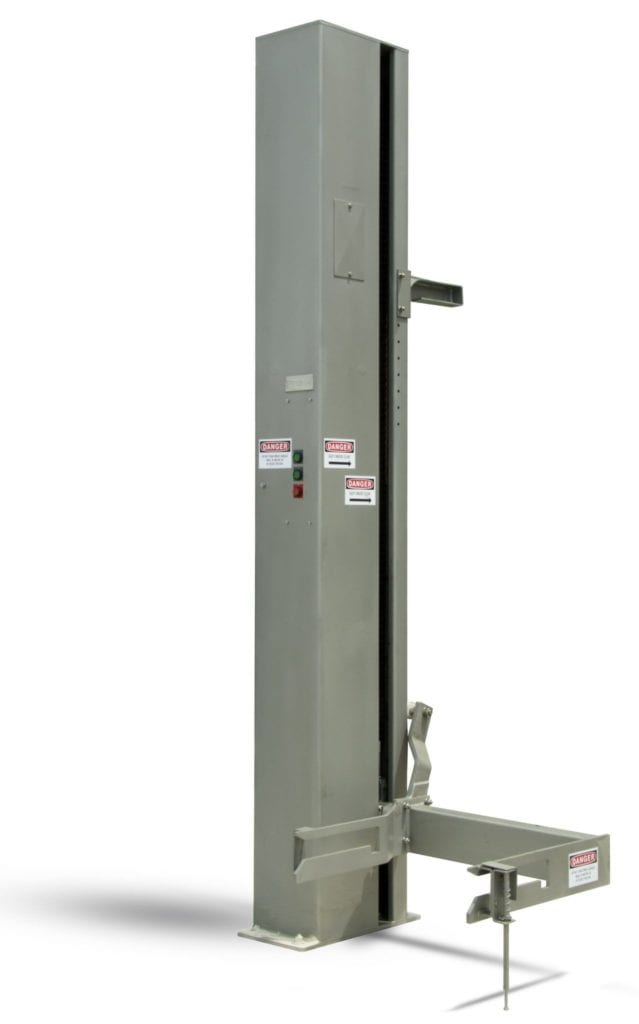

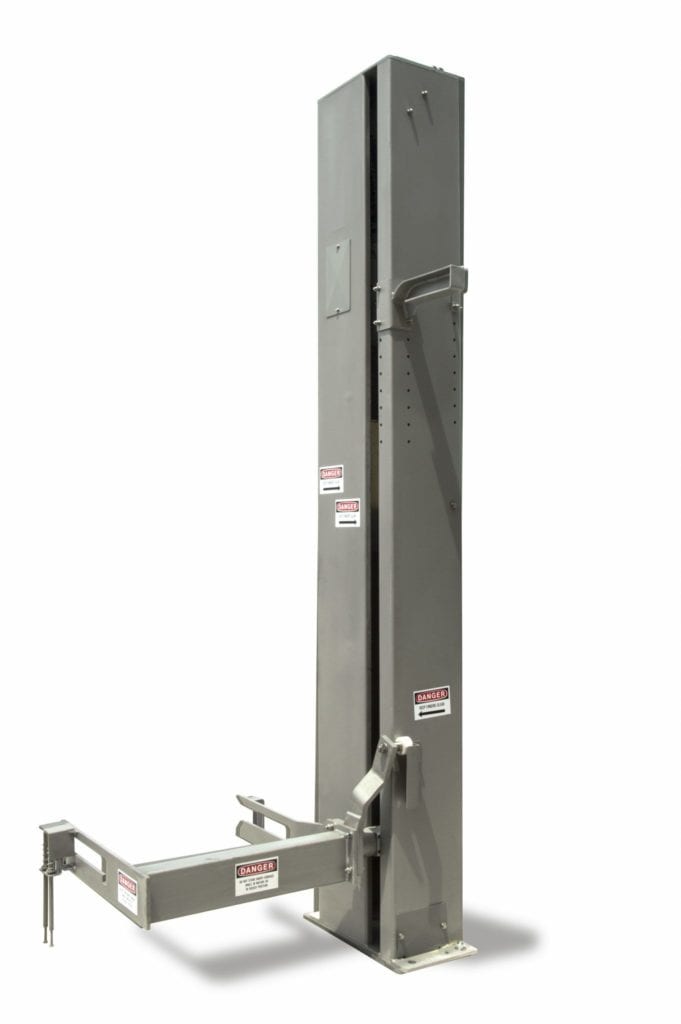

Workhorse Single Column Dumper
The Industry Standard for Durability
A-One Manufacturing’s Workhorse single-column dumper is trusted by food processors for its reliability, safety and efficiency. It can dump a wide variety of ingredients and product and works seamlessly with A-One’s industry-leading DuraMag carts, drums, troughs and numerous other containers. It also features numerous safety and convenience features and is built with top-quality materials and food-grade components for maximum durability.
Workhorse column dumpers can be scaled to handle loads up to 600, 1,000 or 1,500 lbs. It is available in a range of dump heights to work perfectly in tandem with other equipment and your footprint.
Standard Features
- USDA accepted
- 600-, 1,000- or 1,500-lb. product lifting capacity
- Available as right- or left-hand unit
- Stainless steel T-304 exterior w/glass bead-blasted finish
- 3/16″-thick column
- Complete controls with Allen Bradley components
- Electric gearmotor with brake
- Safety brake on lift chain
- Redundant safety switch at end of dump cycle
- Floor-level loading
- 35-degree dump angle with standard V-Mag cart
- Access to all internal components via bolted-on door
Available Options

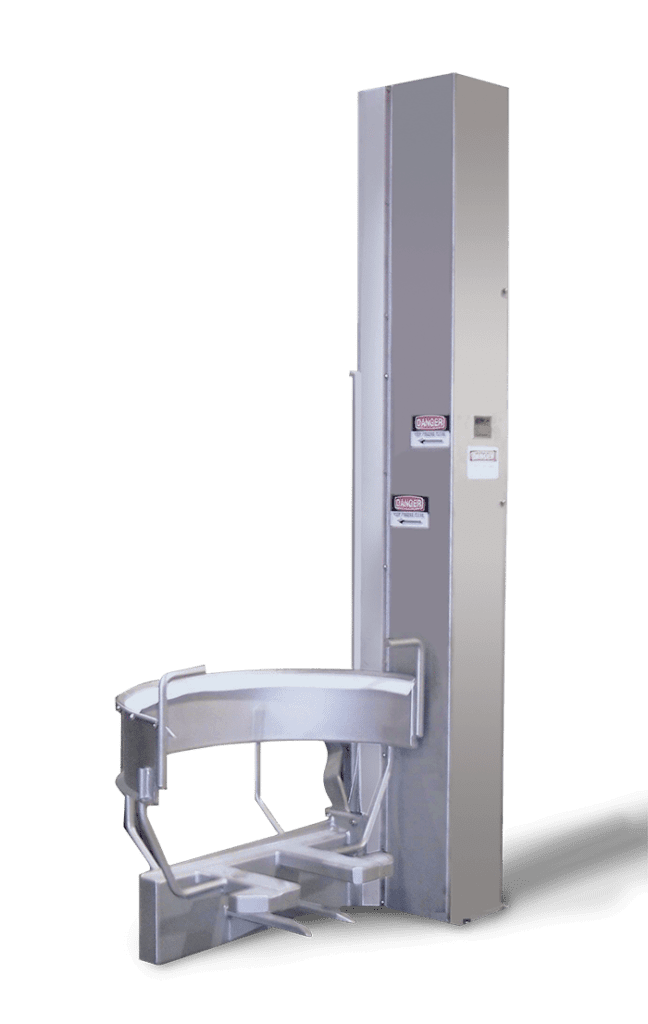

- Custom carriages for all container types
- Portable dolly for ease of mobility
- Hinged access door with latch
- Internal stainless steel lift assembly
- Internal stainless steel guidepost
- Weatherproof chain
- Splash curtain for lifting arm slot
- Extensions chutes

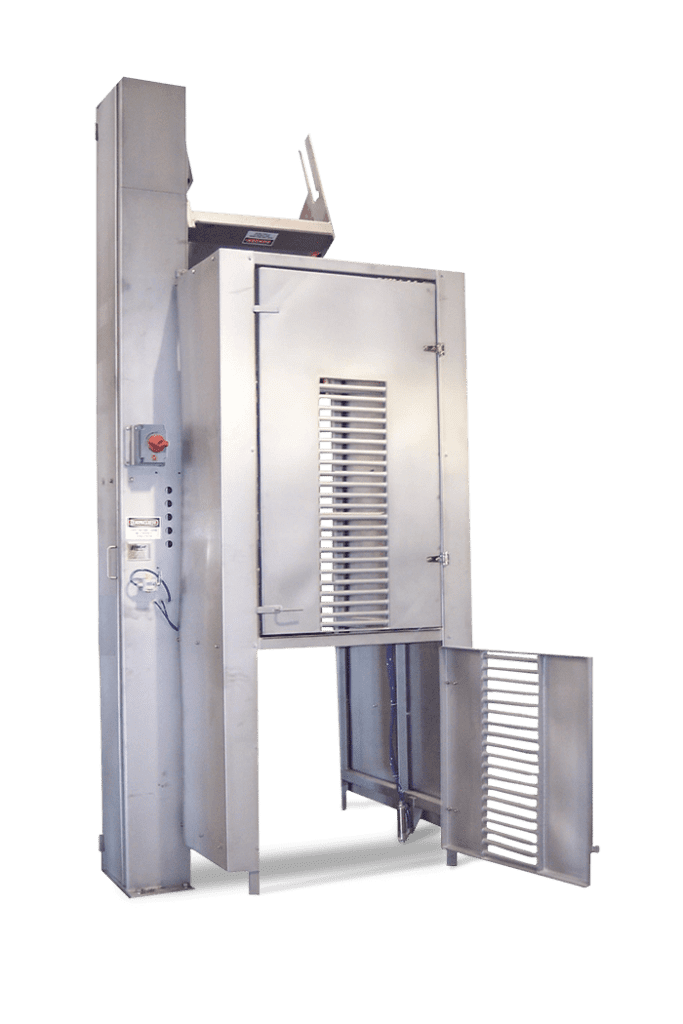

- Custom safety cages
